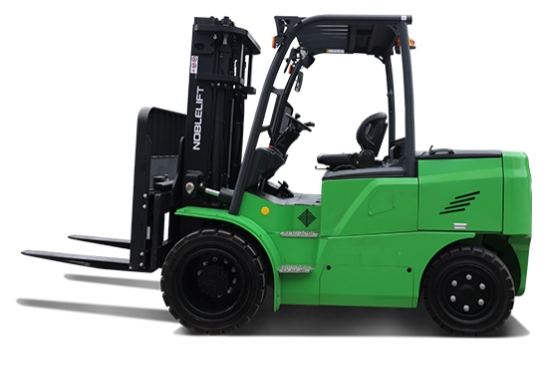

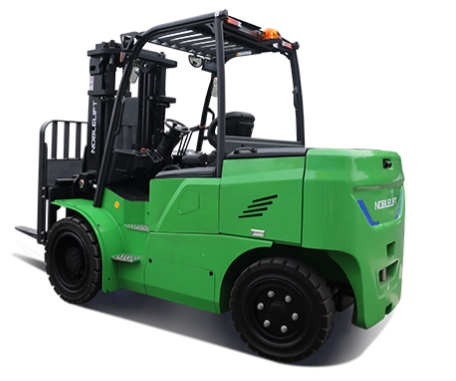

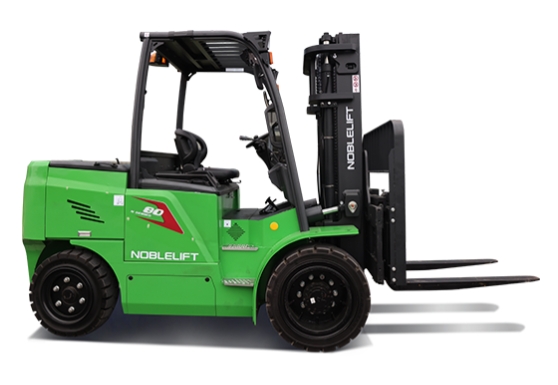

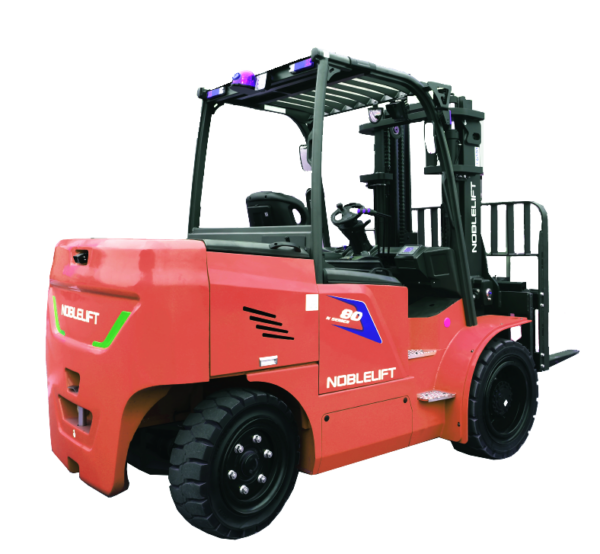

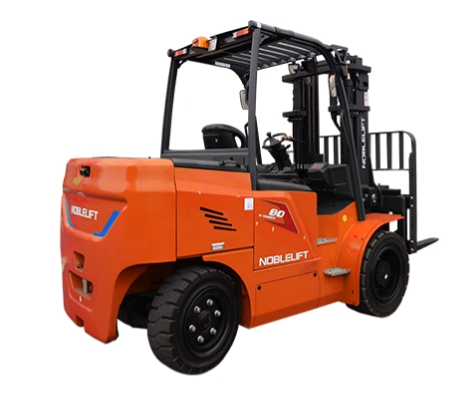

Forklift FE4P60-70-80N lead-acid/lithium battery Materials Handling 6000/7000/8000kg counterweight

描述

FE4P60-80N lead-acid/lithium battery counterweight forklift truck

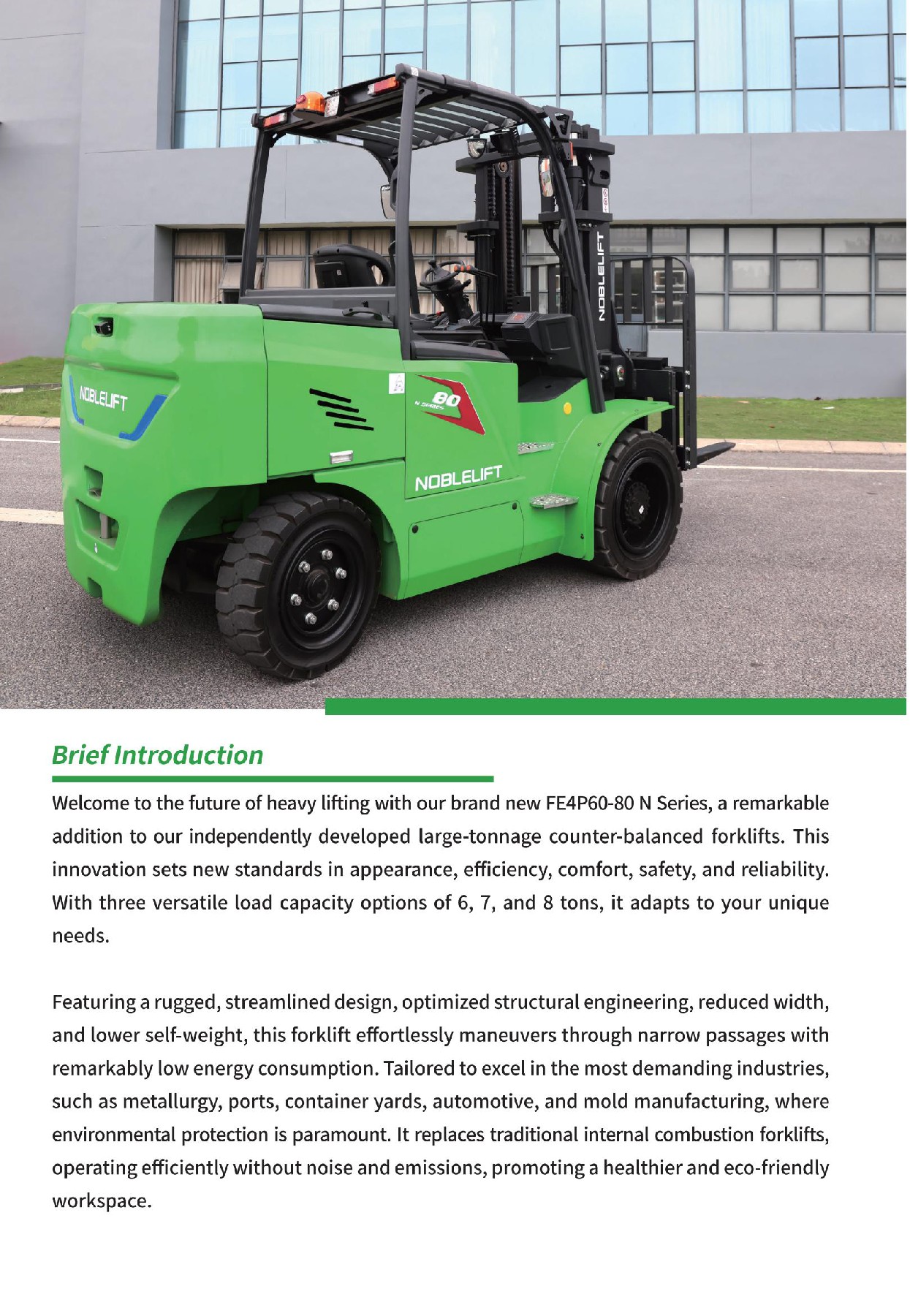

Product introduction

The 6-8 ton N series is a large tonnage electric balance weight product independently developed by Nori. Products in appearance shape, performance efficiency, comfort
Adaptability, safety and reliability are convenient for comprehensive improvement, and there are three kinds of load models of 6 tons, 7 tons and 8 tons respectively.
The forklifts vehicle line style is tough, the structure design is optimized, the width is reduced, the vehicle weight is reduced, and the work is more flexible in the narrow channel
Lower energy consumption. Large tonnage electric forklift is suitable for special metallurgical industry, port, container yard and steam with high environmental protection requirements
Car industry, mold industry, etc., can replace the traditional internal combustion forklift efficient operation, no noise, no exhaust gas, health and environmental protection.

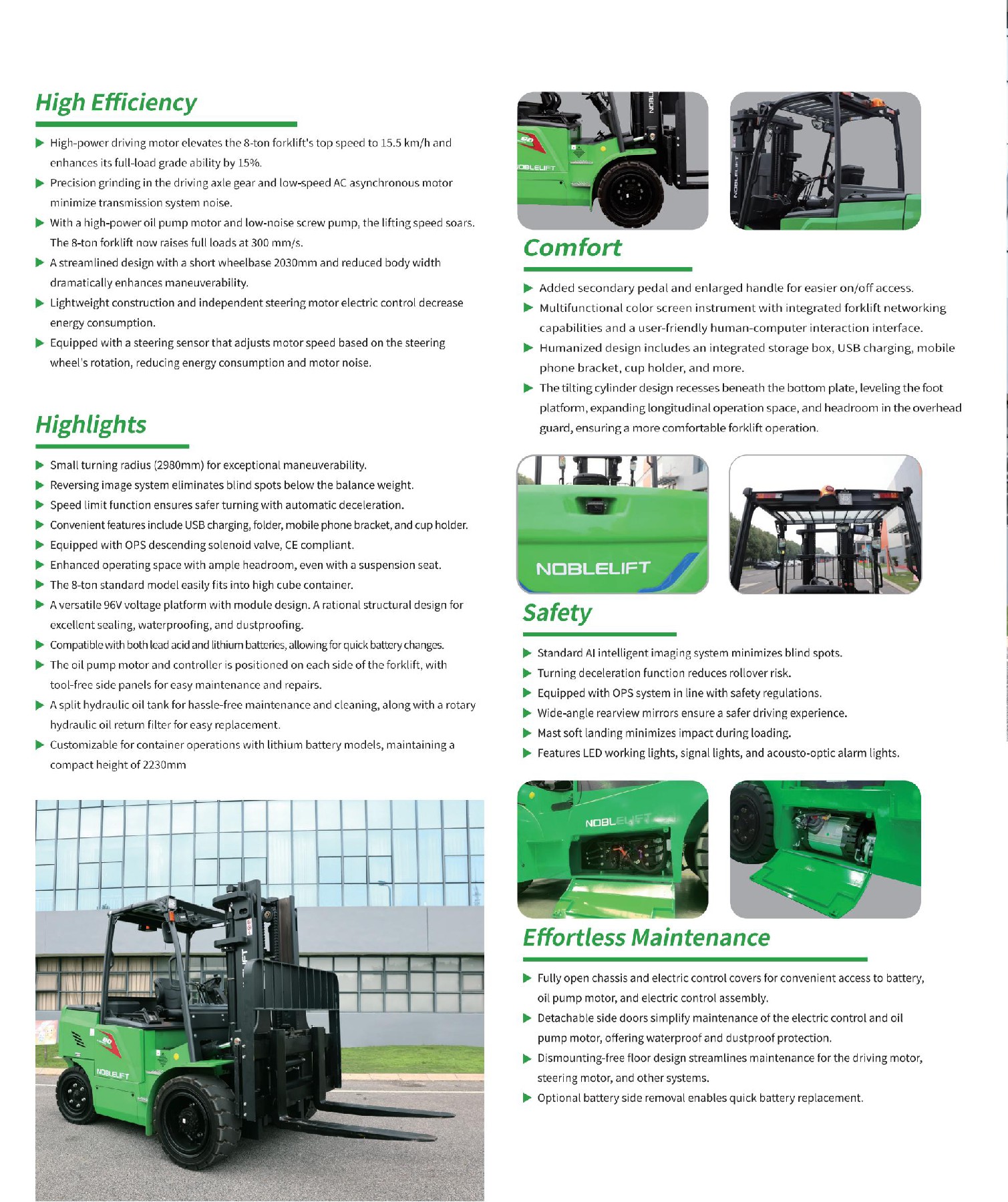

High performance
The transmission system uses high-power walking motor, and the maximum traveling speed of 8 tons is increased to 15.5km/h, and the full load is the most
Steep climb up to 15%;
The drive axle gear adopts the grinding process, low-speed AC asynchronous motor, greatly reducing the noise of the transmission system
Using high-power oil pump motor and low noise screw pump, the lifting speed is greatly improved, and the lifting speed is 8 tons full load
Increased to 300mm/s.
> Compact design concept, short wheelbase (2030mm), reduce the width of the body, and greatly improve the vehicle passability;
Light weight, independent steering motor electronic control, driving energy consumption is reduced;
> Steering operation sensor monitoring configuration, can adjust the steering motor speed according to the steering wheel rotation speed; drop
Low power consumption and steering motor noise.
security
Add two pedals to get on and off the bus, and increase the handle on the bus to make getting on and off the bus more convenient;
Multi-function color screen instrument, integrated vehicle networking function, human-computer interaction interface is friendly;
· Humanized design, integrated storage box, USB charging, mobile phone stand, water cup holder, folder, etc.;
The inclined cylinder sinks under the bottom plate, flattens the bottom plate, increases the longitudinal control space, and protects the head space of the top frame
Increase;
Make operation more comfortable;
comfort
Standard AI intelligent image system, full screen detection, buzzer warning, reduce visual blind areas;
Standard cornering deceleration function to reduce the risk of vehicle rollover;
Equipped with OPS safety system, in line with regulatory requirements;
· Equipped with both side mirrors and central wide-angle mirrors to provide a wider rear view, making driving more efficient
Security:
Equipped with a gantry drop buffer function to reduce the impact of goods on the ground
▶ Equipped with the whole car LED working light, signal light and sound and light alarm rotating warning light;
NOBLELIFT
maintainability
Can be full boot cover and electric control cover, so that the battery, oil pump motor and electric control assembly maintenance is convenient;
The doors on both sides of the frame can be disassembled, which can facilitate the overhaul and maintenance of the electric control and oil pump motor and waterproof
Good dustproof;
The floor under the foot is free of disassembly design, which can facilitate the inspection of the walking motor and the steering motor and various systems
Repair and maintenance;
, optional battery side removal solution, can quickly replace the battery;
Vehicle advantage
· Small turning radius (2980), good vehicle passability;
· Equipped with reversing image system to reduce the visual blind area below the balance weight;
Turning speed limit function, turning automatic deceleration, safety is guaranteed;
· Equipped with USB charging, folder, mobile phone case, water cup holder; Convenient for portable device charging and other equipment expansion;
▶ Equipped with OPS drop solenoid valve, in line with CE standard;
The operation space is increased, and the driver’s head space is sufficient when the suspension seat is selected;
▶8t standard car can enter the high cabinet, convenient transportation;
> The use of 96V voltage platform, accessories versatility; Reasonable structure design, good sealing, waterproof and dustproof;
Lead-acid and lithium batteries are designed on the same platform, and the battery can be switched quickly;
· Oil pump motor and controller on the left and right sides of the body, tool-free side panel design, easy maintenance;
Split hydraulic tank, easy maintenance and cleaning, rotary hydraulic oil filter, easy to replace the filter element;
Lithium electric models can be customized into the box operation forklift, the vehicle height of 2230mm;

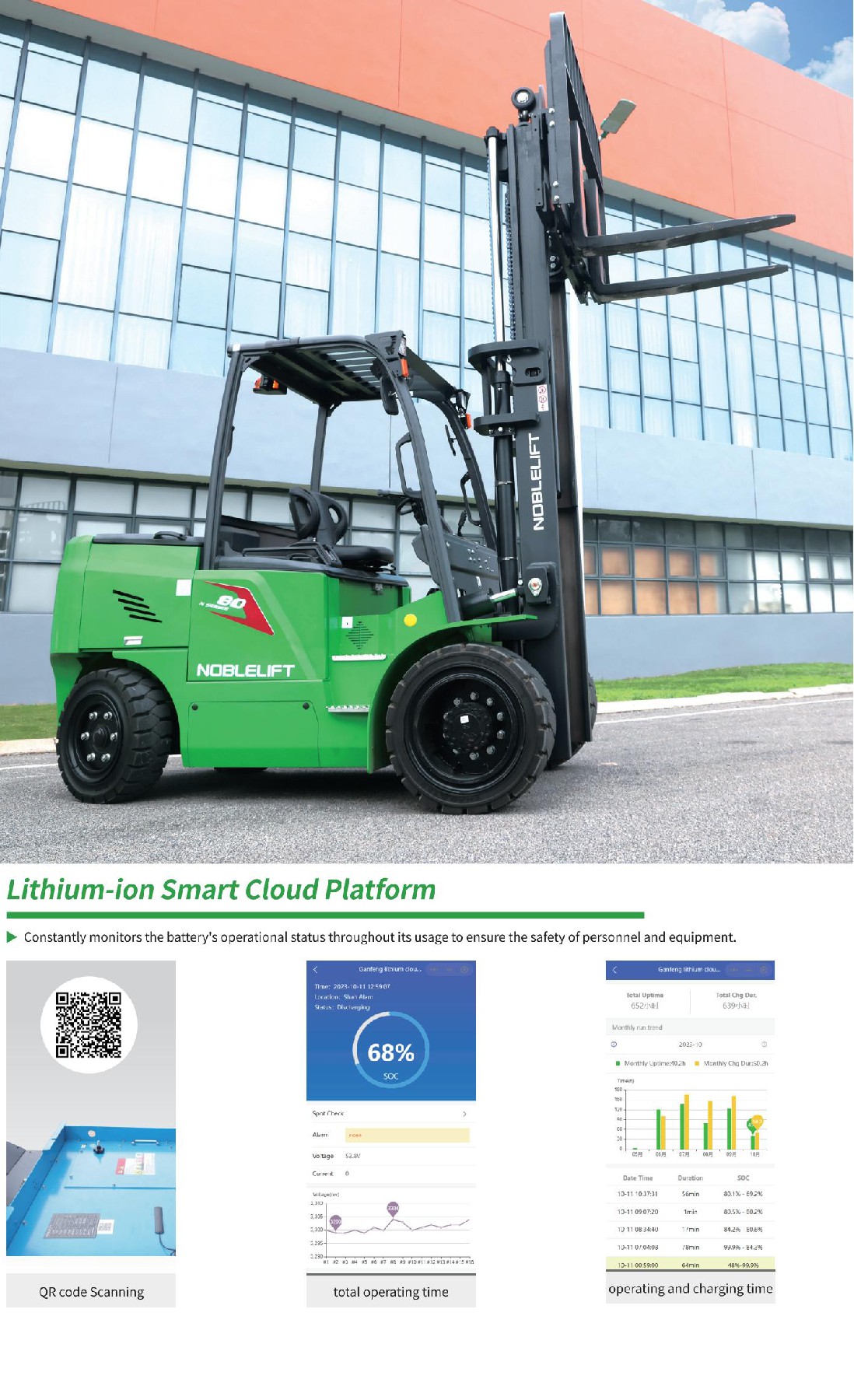

Carp electric intelligent cloud platform
> Monitor the working status of the battery forklifts throughout the process to ensure the safety of personnel and equipment
